.223 / 5.56 Fat Mofo Gen 3 Flash Can Concussion Linear Brake 1/2″-28

$74.99

Specifications:

  • .223/ 5.56 NATO
  • Thread Pitch: 1/2″ – 28
  • Length Of INNER Comp: 2.19″
  • Outer Diameter of INNER Comp At The Front: .762″
  • Outer Diameter of INNER Comp At Base By Wrench Flats: .938″
  • Bore Diameter: .270 (+/-) With A .05 Variance
  • Weight Of Inner Comp: 2.9oz
  • Materials: 4140 Chromoly
  • Color: Black Nitride Finish
  • Ported All Around On The INNER Comp
  • Thread Pitch On Outside Of Inner Comp: 15/16″-28



  • Length Of OUTER Comp Cone: 2.43″
  • Overall Diameter: 1.429″
  • Weight Of OUTER Comp Cone: 7.4oz
  • Overall Weight Of The Unit Assembled: 10.2oz
  • Overall Length Of The Unit Assembled: 2.43″
  • Materials: 4140 Chromoly
  • Color: Black Nitride Finish

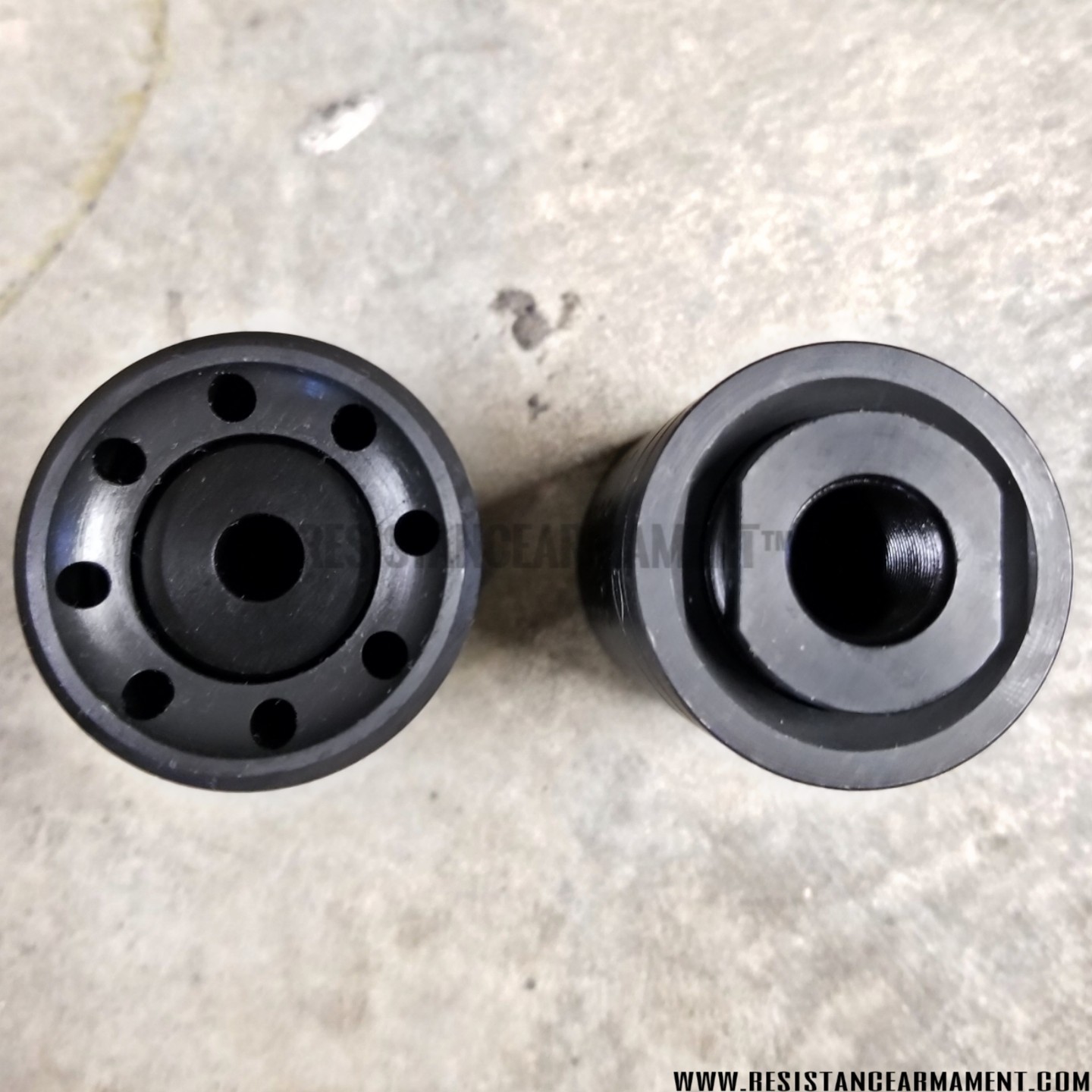

  • Ported With 8 Small Ports Facing Forward At The Front Of The Outer Comp Cone
  • Dimpled All Across The Diameter Of The Outer Cone
  • Crush Washer Included
  • Proudly Machined In America

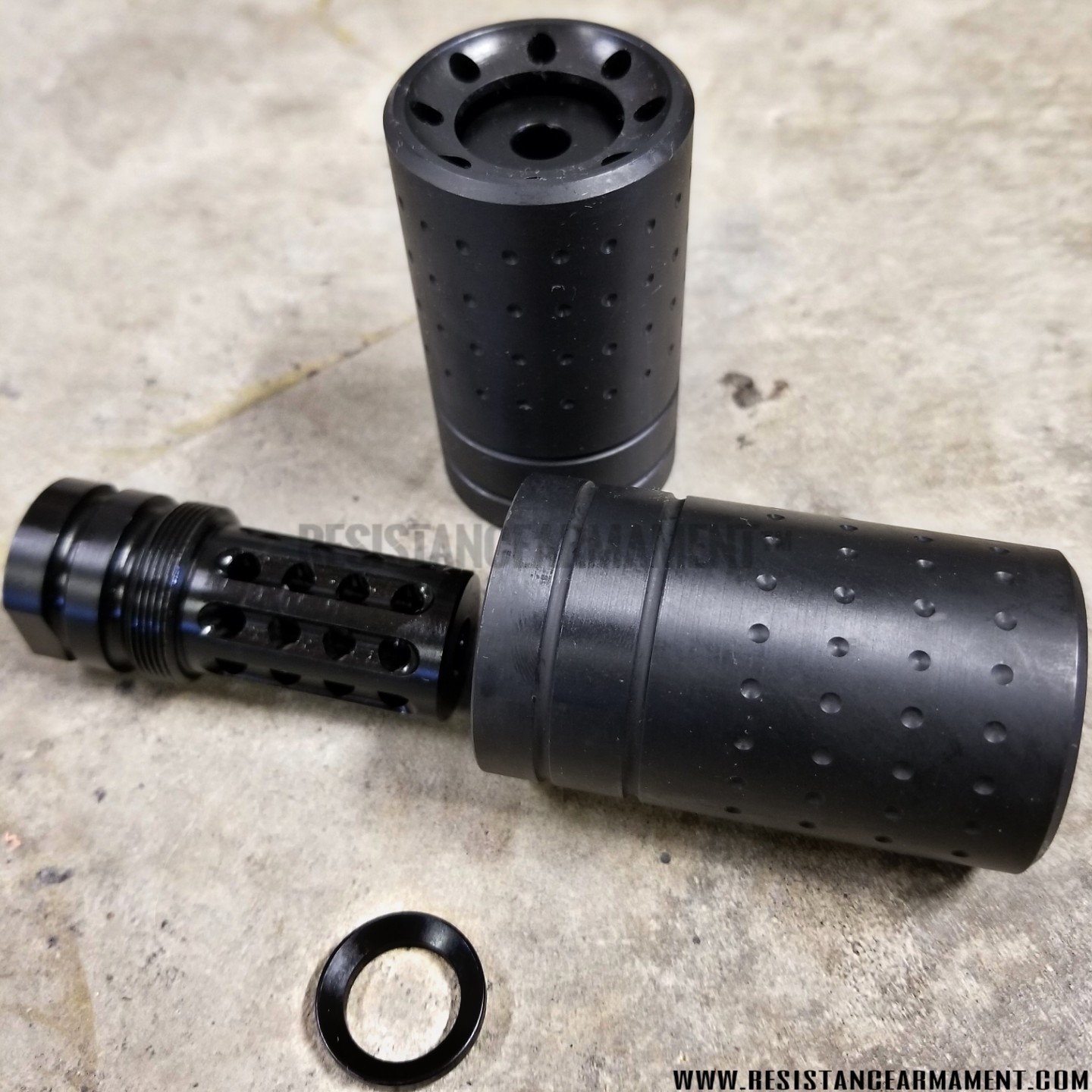

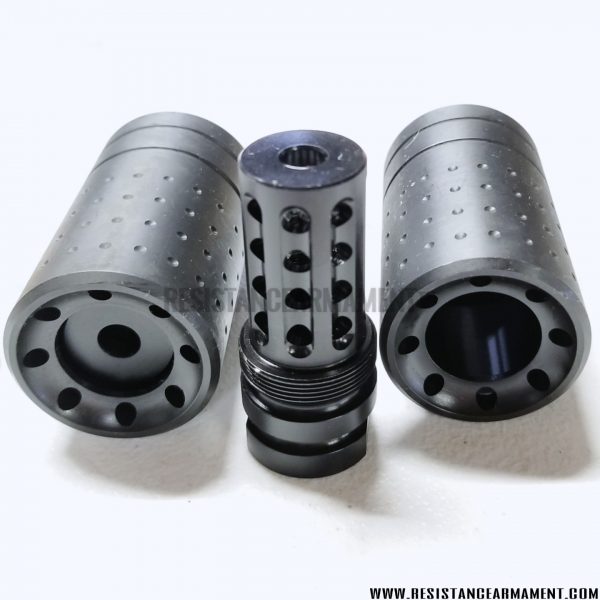

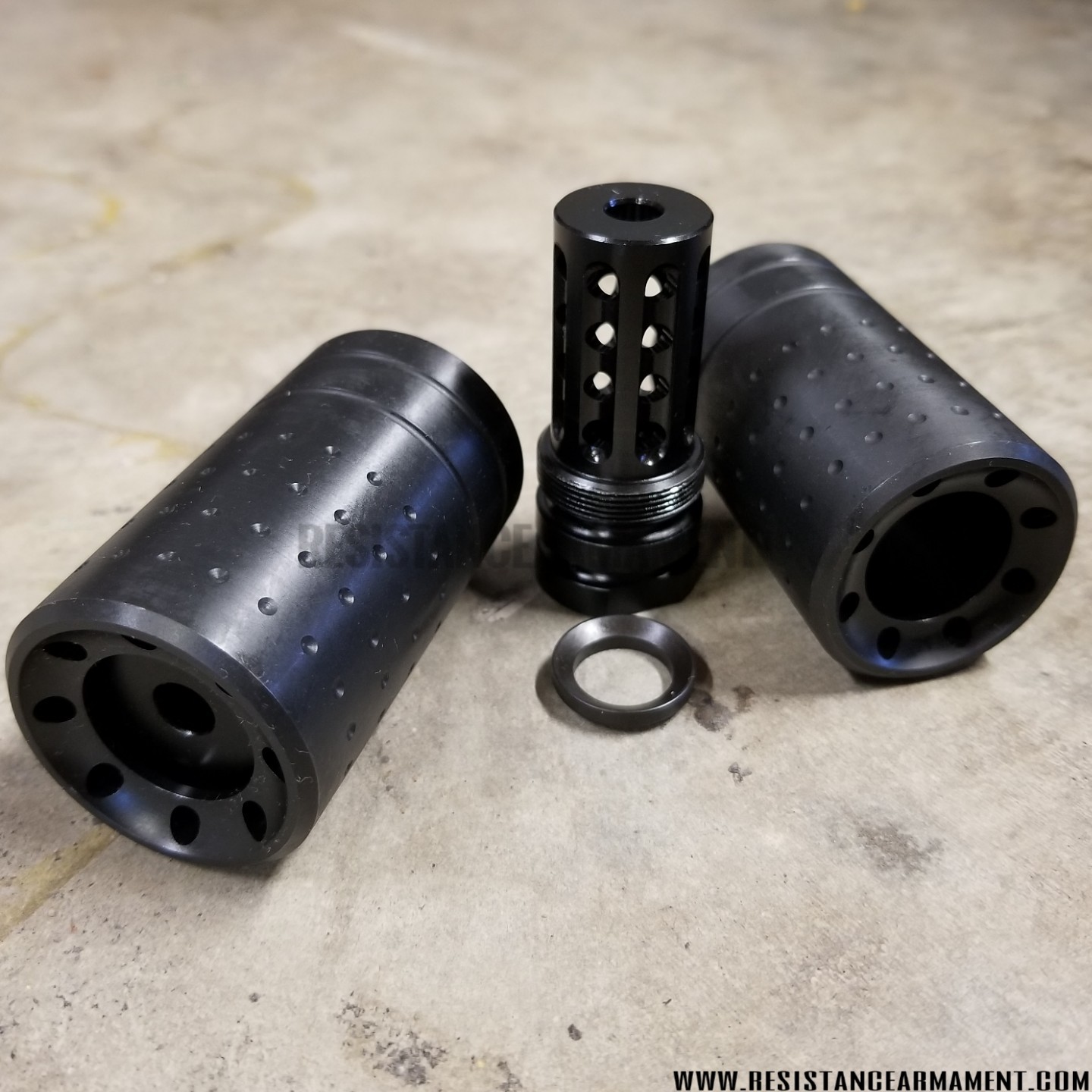

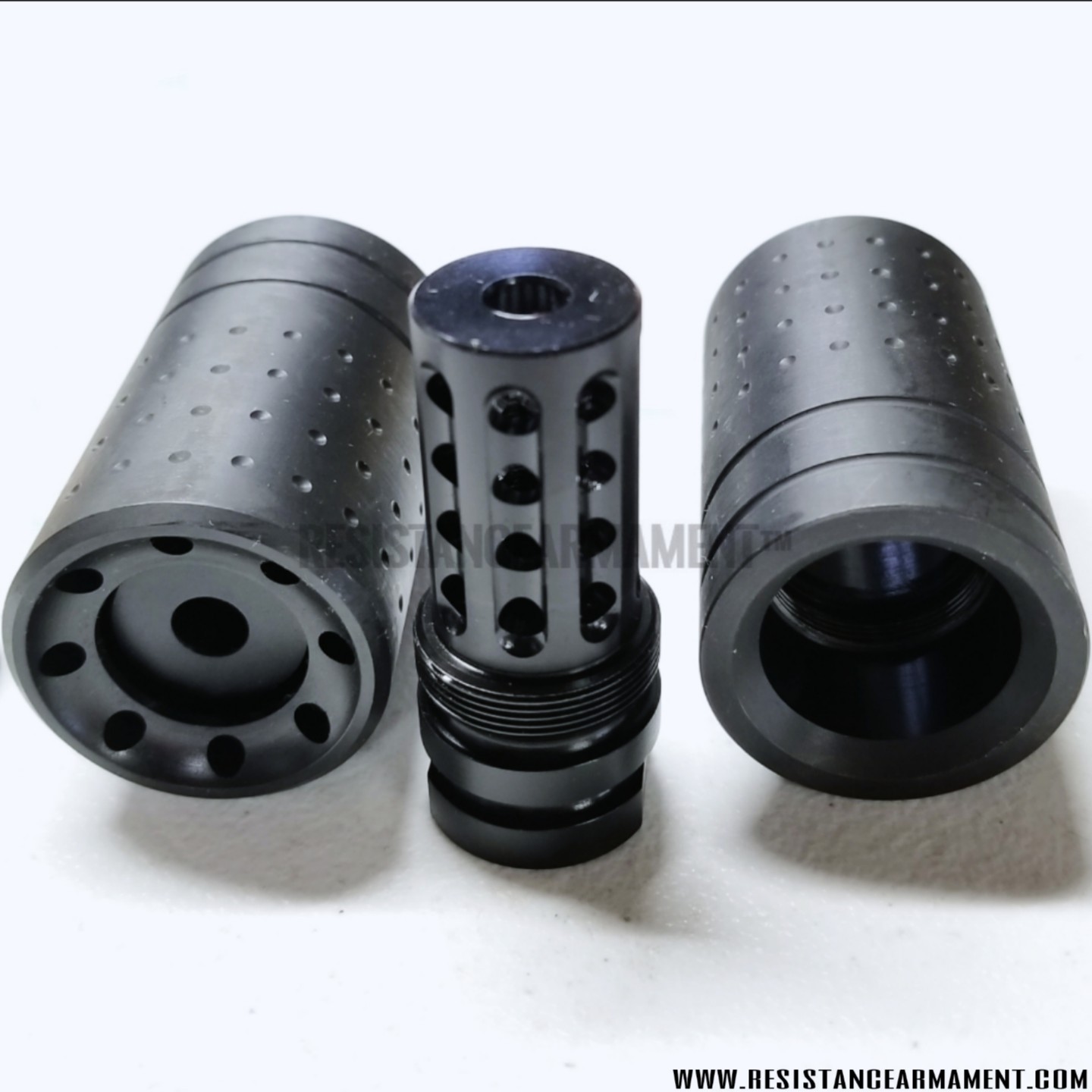

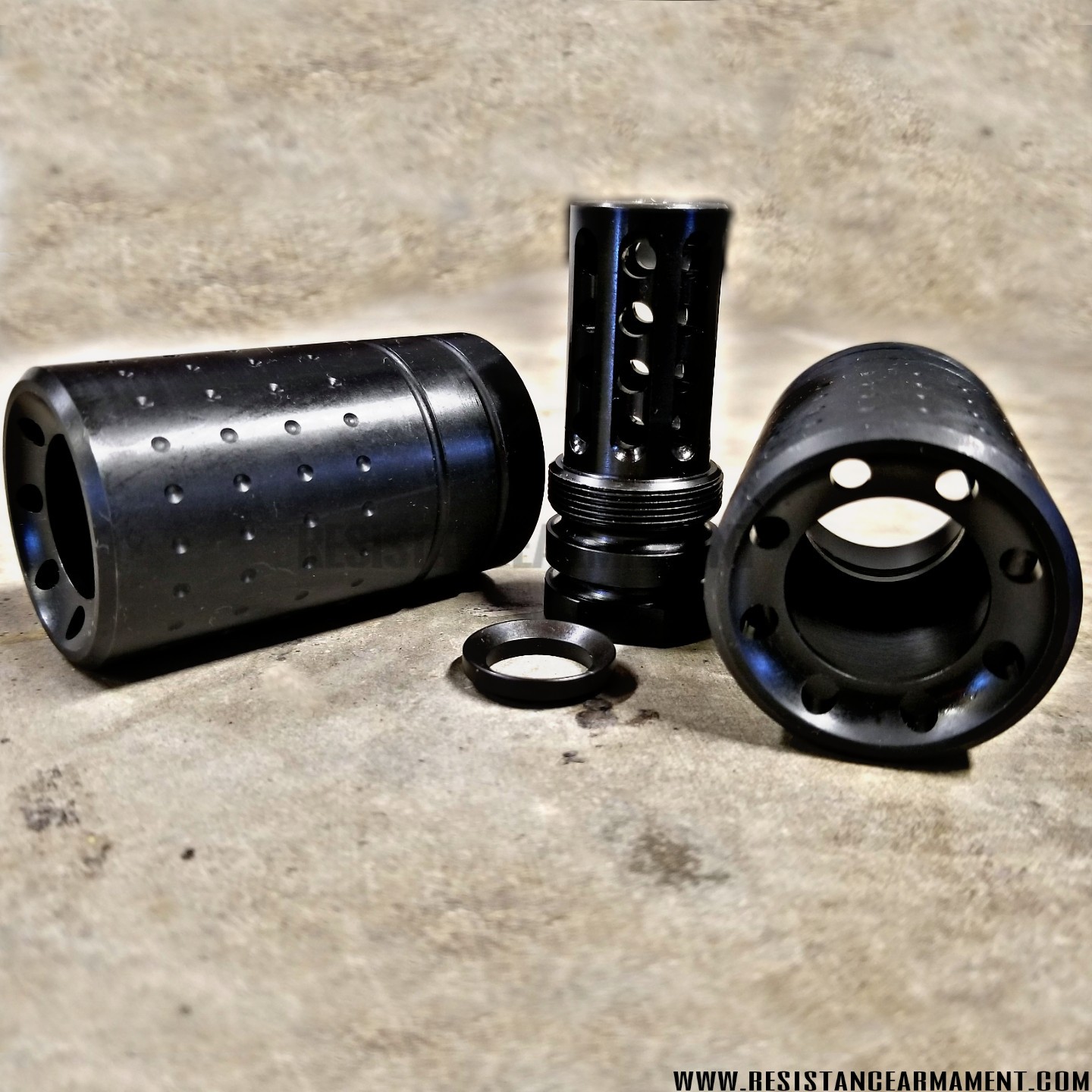

  • TWO BRAKES PICTURED FOR PURPOSES OF DISPLAYING ASSEMBLED AND DISASSEMBLED SIMULTANEOUSLY. ONLY ONE INNER AND OUTER BRAKE IS INCLUDED WITH ONE WASHER. NOTHING MORE, NOTHING LESS.
